CarPlay Troubleshooting: Fix Connection, Audio & Display Problems

Quick answer: When CarPlay stops working, start with the connection path before changing advanced settings. Confirm that the vehicle supports CarPlay, check Siri and the correct USB data port, restart the iPhone and car system, then separate wired, wireless, audio and display symptoms. These steps help you identify whether the problem is the phone, cable, port, pairing record, app or vehicle system.

Perform the checks while parked. If the same problem continues with more than one known-good cable or phone, stop changing settings and check the vehicle manual or contact the vehicle manufacturer.

For a narrower symptom, continue to CarPlay not working troubleshooting or the CarPlay connectivity issues guide. Those pages cover more specific situations; this article is the broad starting checklist.

Start with the 5-minute CarPlay checks

1. Confirm support. Check the vehicle model and year against Apple’s CarPlay availability list, then check the vehicle manual for the exact connection method.
2. Check Siri and restrictions. Apple’s troubleshooting guidance says Siri must be on and CarPlay must not be blocked by Screen Time restrictions.
3. Restart both sides. Turn the iPhone and the vehicle’s infotainment system off and back on, then test CarPlay again.
4. Use the correct connection path. A charging-only USB port or cable may not carry the data connection required for wired CarPlay.
5. Change one variable at a time. Try another data cable or USB port, or test the wireless pairing path, so you can identify what changed.

CarPlay is not showing or will not connect

First determine whether the vehicle supports wired CarPlay, wireless CarPlay, or both. Apple’s connection instructions describe separate paths for USB and wireless setups. If CarPlay does not open automatically, look for the CarPlay logo on the vehicle display and select it manually.

Confirm vehicle support, Siri and permissions

Compatibility is a requirement, not a symptom to solve with a new cable. Check the vehicle model and year, keep the iPhone on a current iOS release, make sure Siri is enabled, and verify that CarPlay is allowed under Screen Time restrictions. If the vehicle is not listed or the connection method is unclear, use the vehicle manual or manufacturer support instead of assuming an adapter will add support.

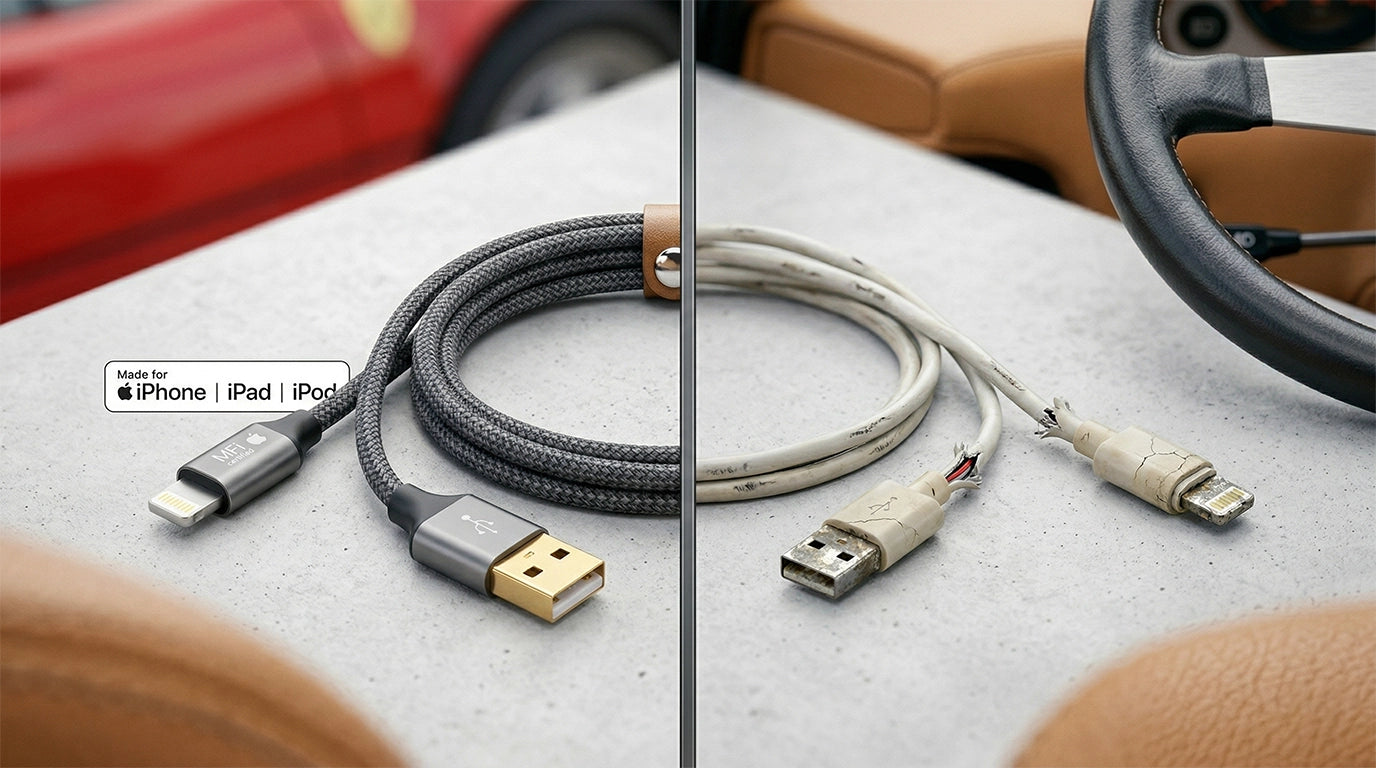

Check the data cable and the correct USB port

For wired CarPlay, test the USB port marked for smartphone or CarPlay data. Some vehicle ports provide power without carrying the data connection. Apple recommends trying another cable and another USB port when a wired connection fails. Inspect the phone port and cable for visible debris or damage, but do not force a connector into the port.

CarPlay keeps disconnecting

Repeated disconnections usually need a wired-versus-wireless check. Do not assume the iPhone is the only cause: the cable, USB port, Bluetooth or Wi-Fi pairing, old vehicle pairing records and vehicle firmware can all belong to the connection chain.

Separate wired and wireless checks

With wired CarPlay, test a different data cable and port first. With wireless CarPlay, keep Bluetooth and Wi-Fi on and confirm that the CarPlay network can auto-join. Move away from competing pairing sessions, then restart the phone and vehicle system. Apple documents these connection checks in its CarPlay support steps.

Forget the car and pair it again

If the connection still drops, open Settings > General > CarPlay, select the vehicle and use the option to forget it. Remove the phone from the vehicle’s paired-device list if the manual instructs you to do so, restart both sides, and complete the pairing process again. This removes an old pairing record without claiming that it will solve every vehicle-specific issue.

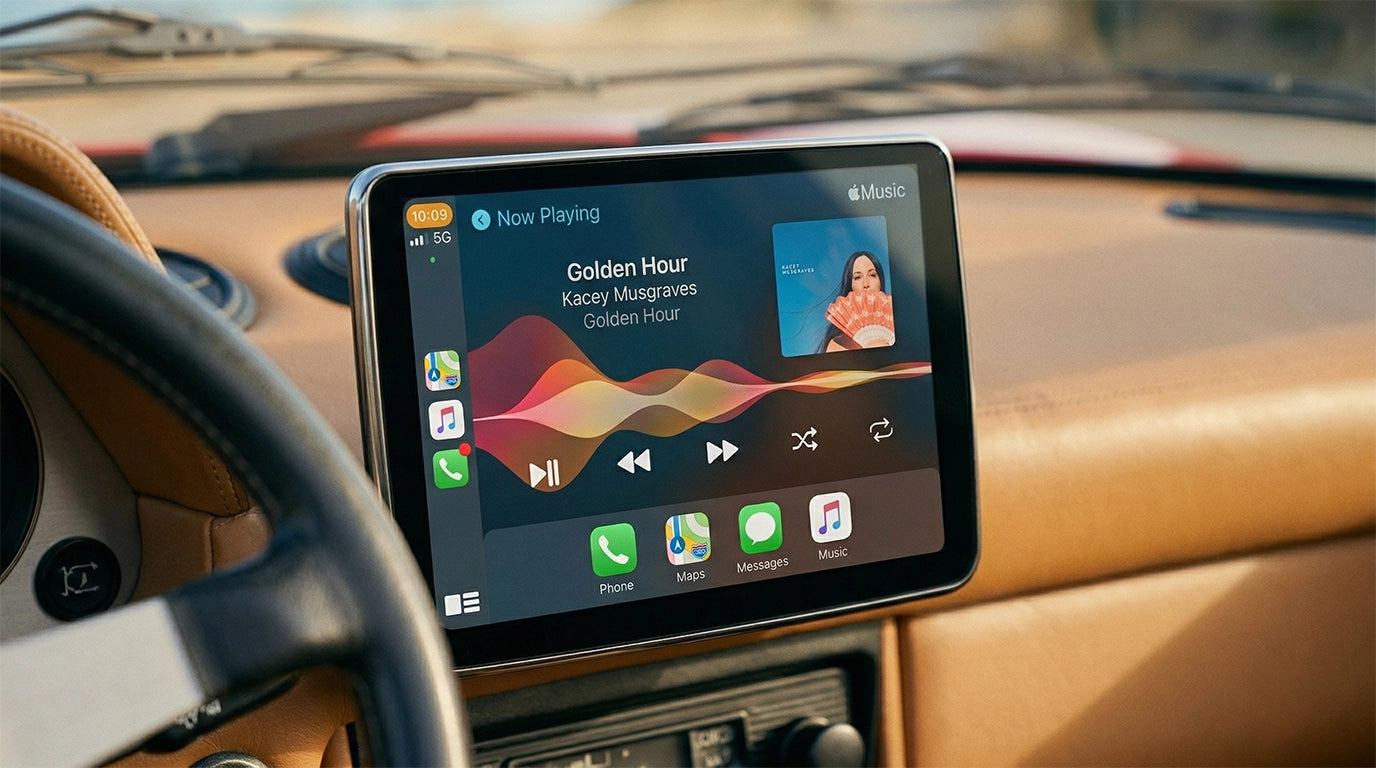

CarPlay connects but audio is missing or unstable

Check the car audio source and volume

When the CarPlay screen opens but audio is missing, confirm that the vehicle is using the CarPlay audio source and check volume on both the iPhone and vehicle controls. If the vehicle has a separate media source selector, use the manual to confirm the correct input.

Test another audio app before changing system settings

Play audio from another supported app. If only one third-party app is silent or unstable, Apple advises checking that app and contacting its developer when needed. If every audio app fails, return to the cable, port, wireless connection and vehicle audio-source checks before attempting a broader reset.

The CarPlay screen is black, frozen or missing

A missing screen does not identify one universal cause. Check whether the phone is actually connected, whether the vehicle is showing another source, and whether the CarPlay logo needs to be selected manually.

Select the CarPlay source and restart the connection

Select the CarPlay logo on the vehicle display, then restart the iPhone and infotainment system. If the vehicle manual describes a separate infotainment reset, follow that vehicle-specific procedure. Do not apply an unfamiliar reset sequence while driving.

Test another cable or data port

For wired setups, try the data port and cable checks again. A phone can charge while the data path is unavailable, so charging alone does not prove that CarPlay is connected. If the screen remains black with multiple known-good combinations, the vehicle system may need manufacturer support.

When a wireless adapter is part of the setup

A wireless adapter should be evaluated only after confirming the vehicle’s existing CarPlay path and the specific compatibility requirements. Use the current CARLUEX compatibility list as a starting point, then check the exact product documentation for the vehicle, phone and connection method. The CARLUEX PRO page and CARLUEX LINK page are product-level sources that can change; this article does not make a universal compatibility or performance claim.

If the vehicle does not already provide the required CarPlay connection, do not treat a wireless adapter as an automatic retrofit. Verify the vehicle-side requirement first and keep the original cable or pairing path available for comparison.

When to stop troubleshooting and check the vehicle manual

• The same failure occurs with more than one known-good cable, port or phone.
• The infotainment system repeatedly reboots or other vehicle functions fail.
• The vehicle requires a model-specific firmware update or reset sequence.
• The exact vehicle, model year or trim is not covered by the available compatibility documentation.

At that point, record what you tested and contact the vehicle manufacturer or an authorized service channel. The troubleshooting order is a diagnostic aid, not a guarantee of a vehicle repair.

If the issue is specific to an Apple connection error, the Apple CarPlay connection issues guide can be used as a second, narrower reference.

FAQ

Why is CarPlay not showing on my car’s screen?

Confirm that the vehicle supports CarPlay, Siri is on, CarPlay is not restricted, and the correct USB data or wireless path is active. If CarPlay does not open automatically, select the CarPlay logo on the vehicle display.

How do I fix CarPlay when it keeps disconnecting?

Separate wired and wireless checks, test another cable or port for a wired setup, verify Bluetooth and Wi-Fi for a wireless setup, then forget and pair the vehicle again. Check the vehicle manual for firmware requirements.

Can wireless CarPlay work in any car?

No. Wireless CarPlay depends on vehicle support and the connection method documented for that vehicle. Check Apple’s availability information and the vehicle manual before evaluating an adapter.

What should I do if CarPlay connects but has no audio?

Check the vehicle audio source and both volume controls, then test another audio app. If the problem affects only one third-party app, check that app’s current support and settings.

Should I reset network settings immediately?

Not as a first step. This article does not recommend a system-wide network reset without a current, reliable source for your exact iPhone and vehicle. Start with the documented connection, restart, cable, port and re-pairing checks.

Official sources used

• Apple Support: If you need help with CarPlay
• Apple Support: How to connect your iPhone to your car
• Apple User Guide: Connect iPhone to CarPlay
